Motion and Manipulation

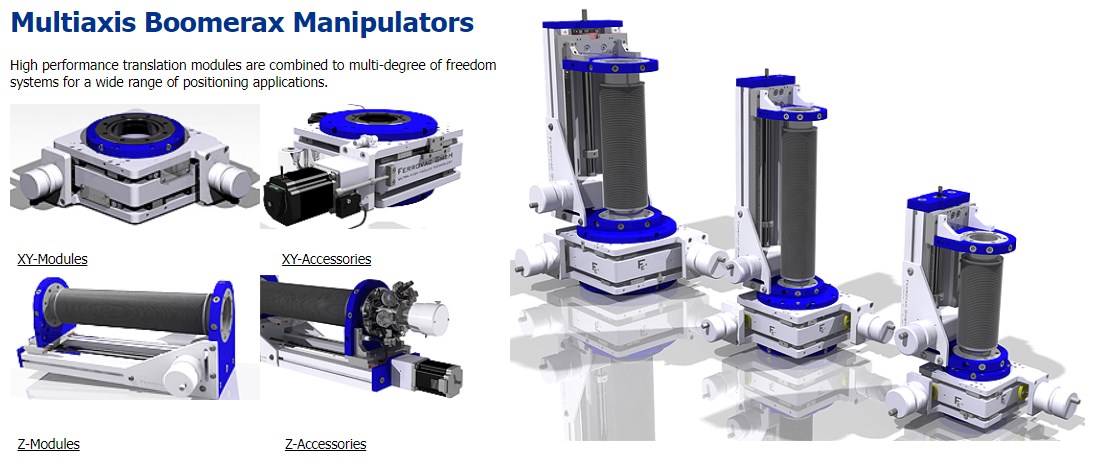

Multi Axis Manipulation

We have a wide range of X-Y-Z Manipulators which have

Standard stroke: 0100 / 0200 / 0300 / 0400 / 0500mm
Standard retracted length: 0030mm
Customized stroke: Specify XXXX Min. 50mm / max. 700mm
Customized retracted length: Specify YYYY Min. 10mm / max. 250mm
Standard Example: MD16-0300-0030 = Linear/Rotary Feedthrough DN16CF,
300mm linear travel, retracted shaft length 30mm.

Magnetic Transporter

Magnetic Transporters are devices to introduce a sample into a vacuum chamber without breaking vacuum. Motion is achieved by use of magnets outside the vacuum to manipulate the mechanism inside the vac

Port Aligners

The SS Scientific Port Aligner range allows the distance and angular dimensions between the two flanges to be adjusted.

Our Port Aligners can be supplied with either tapped or clear bolt holes on the flanges and can provide +/-30mm axial length adjustment from the midpoint along with +/-5oc angular tilt.

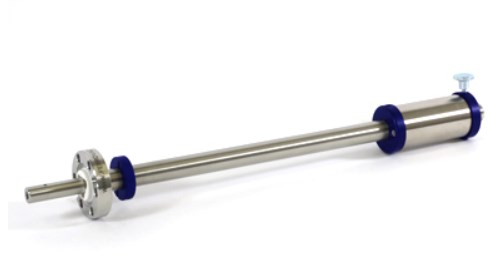

Rotary Motion



Standard stroke: 0100 / 0200 / 0300 / 0400 / 0500mm
Standard retracted length: 0030mm
Customized stroke: Specify XXXX Min. 50mm / max. 700mm
Customized retracted length: Specify YYYY Min. 10mm / max. 250mm
Standard Example: MD16-0300-0030 = Linear/Rotary Feedthrough DN16CF,
300mm linear travel, retracted shaft length 30mm.

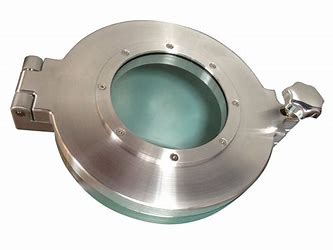

Quick Access Door

Vacuum viewports and access doors are components for viewing, accessing or transferring samples or process devices in a vacuum chamber or system. Viewports and doors are available with glass, quartz, sapphire or other specialty window materials.

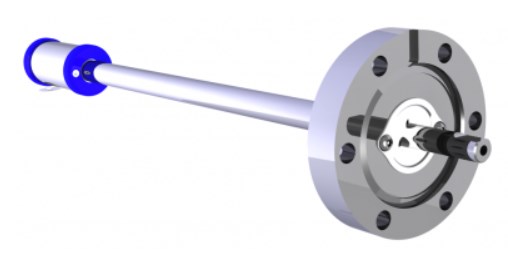

Linear Motion

Standard stroke: 0100 / 0200 / 0300 / 0400 / 0500mm
Standard retracted length: 0030mm
Customize: Specify XXXX Min. 50mm / max. 700mm
Customized retracted length: Specify YYYY Min. 10mm / max. 250mm
Standard Example: MD16-0300-0030 = Linear/Rotary Feedthrough DN16CF, 300mm linear travel, retracted shaft length 30mm.

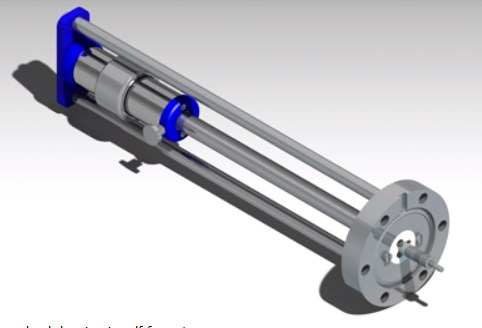

Multi-Motion

Standard stroke: 0100 / 0200 / 0300 / 0400 / 0500mm
Standard retracted length: 0030mm
Customized stroke: Specify XXXX Min. 50mm / max. 700mm
Customized retracted length: Specify YYYY Min. 10mm / max. 250mm
Standard Example: MD16-0300-0030 = Linear/Rotary Feedthrough DN16CF,
300mm linear travel, retracted shaft length 30mm.
